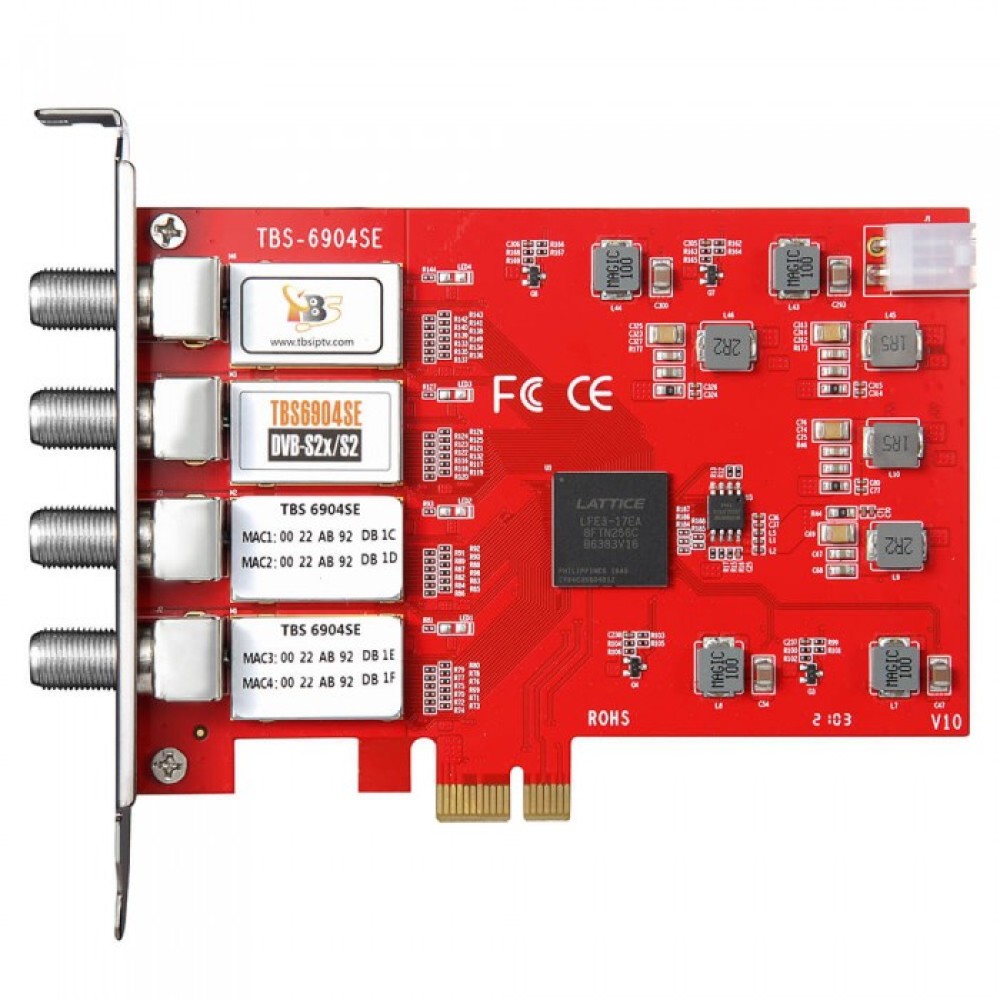

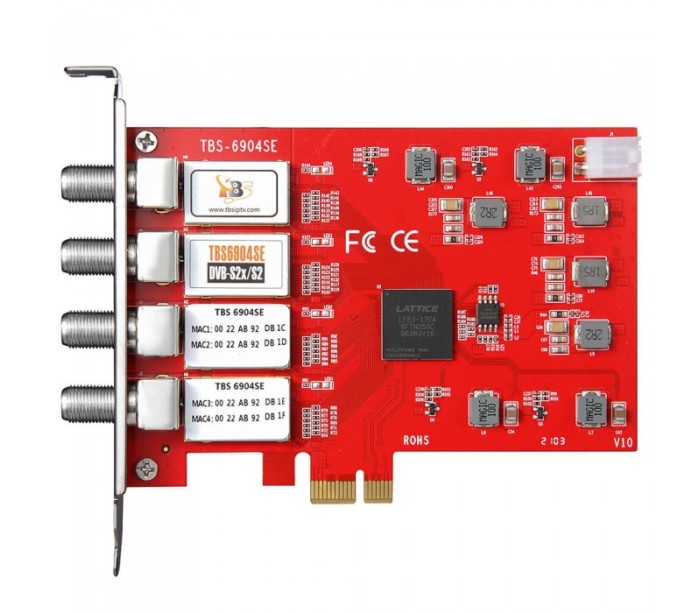

TBS6904SE S2X Quad Tuner PCIe Card

TBS6904SE is the successor of TBS6904, it not only supports to receive SD/HD digital TV channels from 4 different satellite transponders simultaneously, but also supports VCM, which is considered as a professional TV tuner for industrial-level users. The four advanced S2X/S2/S tuners enable you to watch TV channel from one satellite transponder, while recording three other channels from different satellite transponders at the same time. This quad tuner card is one of the most popular TV tuners for building IPTV streaming systems.

Main Features:

Support Quad DVB-S/S2
Fast scanning functionality for all media
Supports VCM and multi stream
High-speed data download via satellite
Watch & record satellite TV / radio programs on PC

Applications:

Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specification

Model		TBS6904SE
Connection		PCI-express
		4x RF in
DVB-S/S2/S2X
DVB-S/S2	QPSK	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	8PSK	3/5, 2/3, 3/4, 5/6, 8/9, 9/10
	16APSK	2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	32APSK	3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X	QPSK	1/4,1/3, 2/5 (S2-MODCODs)
		1/2, 3/5, 2/3, 3/4, 4/5, 5/6
		8/9, 9/10 (S2-MODCODs)
		11/45, 4/15, 14/45, 7/15 8/15, 32/45
	8PSK (8APSK-L)	3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
		7/15, 8/15, 26/45, 32/45
	16APSK	2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
		7/15, 8/15, 26/45, 3/5, 32/45
	32APSK(32APSK-L)	3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45 ,11/15,7/9 ,(2/3)
VCM		Yes
Symbol rate		1 ~ 45Msymb/s
Power consumption
Input/ Power:		8 ~ 12W
temperature		0°~ 78°
System Requirements		Windows XP / Vista/ 7/ 8/ 10, Linux
		Available PCI Express x1, x4, x8 or x16 slot
Dimension:
TV tuner card size		145 * 92 * 1.6mm
Gift Box Size		200 * 130 * 30mm
Weight		400g
Package Contents		1* TBS69094SE
		1* Power cable
