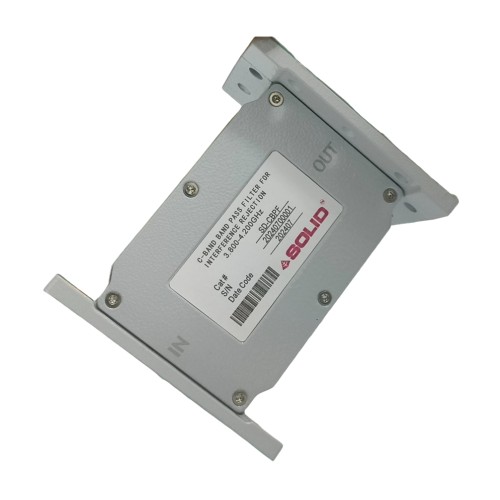

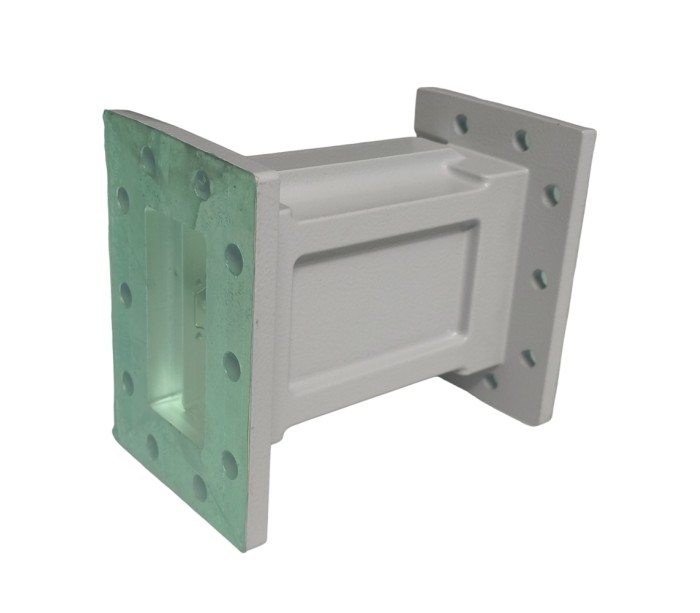

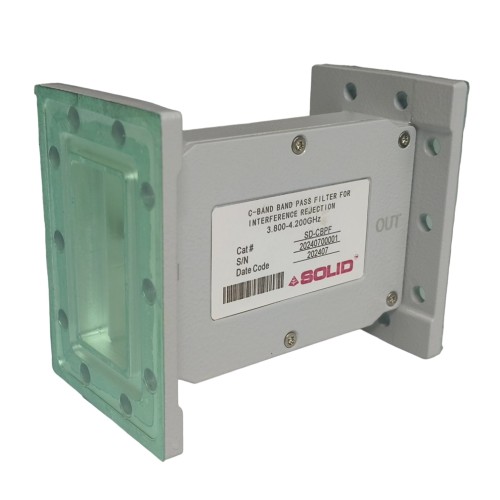

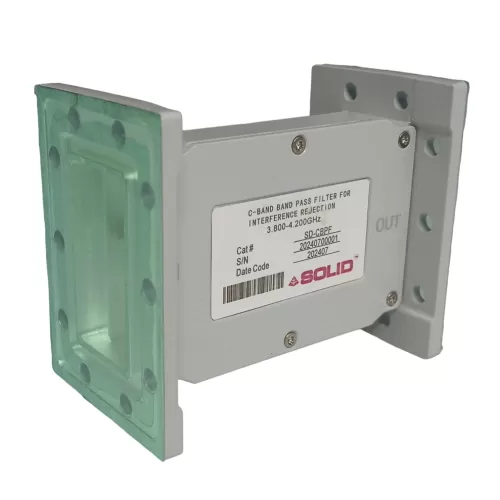

SOLID CBPF 3600-4100MHz C-BAND BAND PASS FILTER
Pass band: 3720-4200MHz
Suitable for indoor and outdoor applications
Plane mounting
Connector Type,Flange
Electrical Specifications |
|||
Type No. |
FT6B36410010 |
||
Frequency Band (MHz) |
3600-4100 |
||
Insertion Loss (dB)(Full temperature,Outcluding connectors) |
0.5max |
||
Rejection (dB) |
≥70@3000-3400MHz,≥70@3400-3500MHz, ≥20@4150-4400MHz, ≥70@4400-5000MHz |
||
Return Loss (dB)/VSWR |
≤-18/1.3:1 |
||
Input Power (W) |
<100 |
||
Mechanical Specifications |
Environmental & Compliance |
||
Dimensions,HxWxD (mm) |
170x98.5x69.9 |
Operational Temperature (°C) |
-40 to +65 |
Weight (kg) |
0.8 |
Operational Humidity (%) |
≤95 |
Packing Size(mm) |
235x170x120 |
Environment |
IP67 |
Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
Color |
Apple White |
RoHS |
Compliant |
Mounting |
Plane mounting |
Finish |
UV resistant Epoxy |
SOLID CBPF 3600-4100MHz C-BAND BAND PASS FILTER
- Brand: Solid
- SKU: CBPF-3600-4100
- Reward Coins: 200
- Availability: Out Of Stock
-
₹10,000.00
- Price in reward coins: 10000
