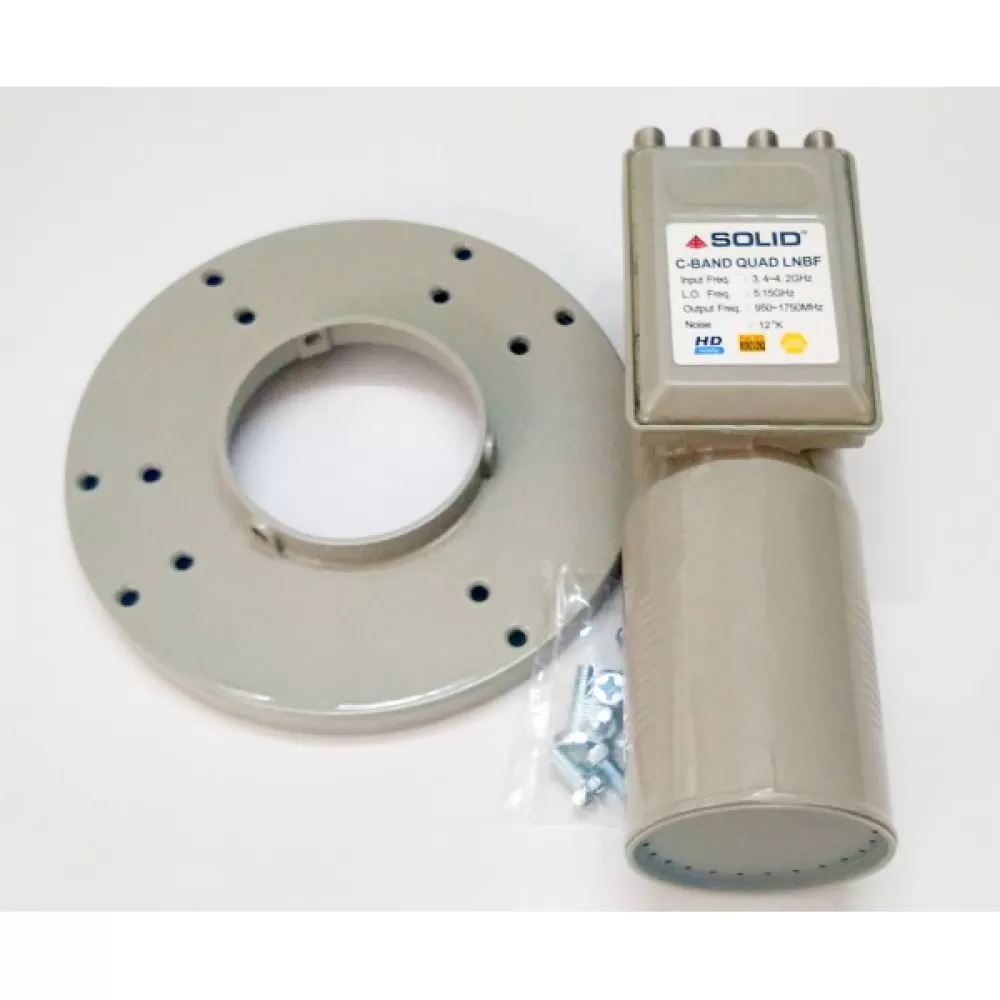

SOLID 4 Output Linear C Band Satellite Dish LNB (CB-4)

Key Features:

Special for digital C-band satellite reception

Voltage-controlled H/ V switching (13/ 18 V)

Superior low phase noise for digital application

Excellent D.R.O. stability

Low noise temperature

High gain output

Lightweight design

100% waterproof

Super compact tooling

Scalar ring included

The best solution for a multi-user system

Specification:

1. Input Frequency: 3.4 to 4.2 GHz

2. L.O. Frequency: 5150MHz

3. Output Frequency: 950 to 1750MHz

4. L.O. Leakage Input Port: 45dBm

5. L.O. Stability: ±1.5MHz(-40centigrade to+70centigrade)

6. Noise Figure  12°K

7. Conversion Gain - 65dB

8.Gain Flatness:±1 dBm(max)

Please note - there is a printing mistake on LNB Sticker which mentioned 3.4-4.2, please avoid.
