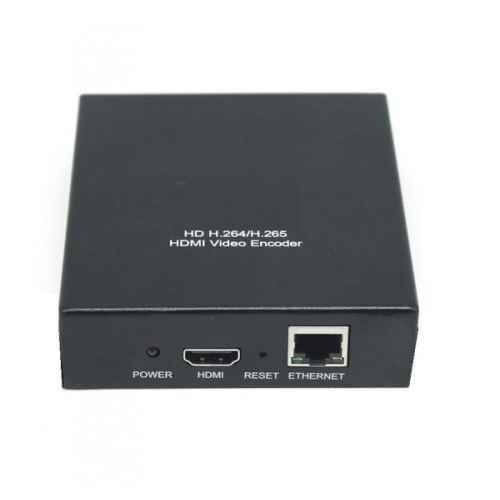

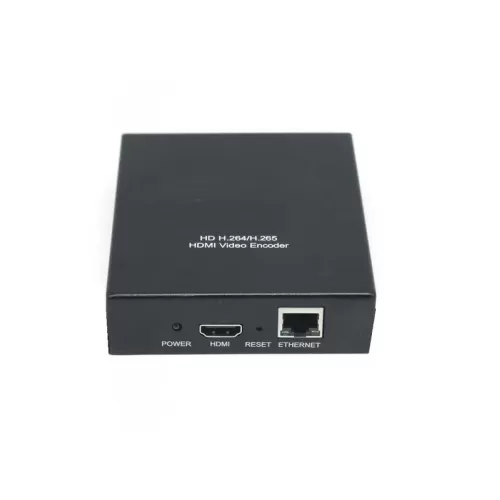

TBS 2603 SE HDMI Video Encoder for Streaming Live Channel

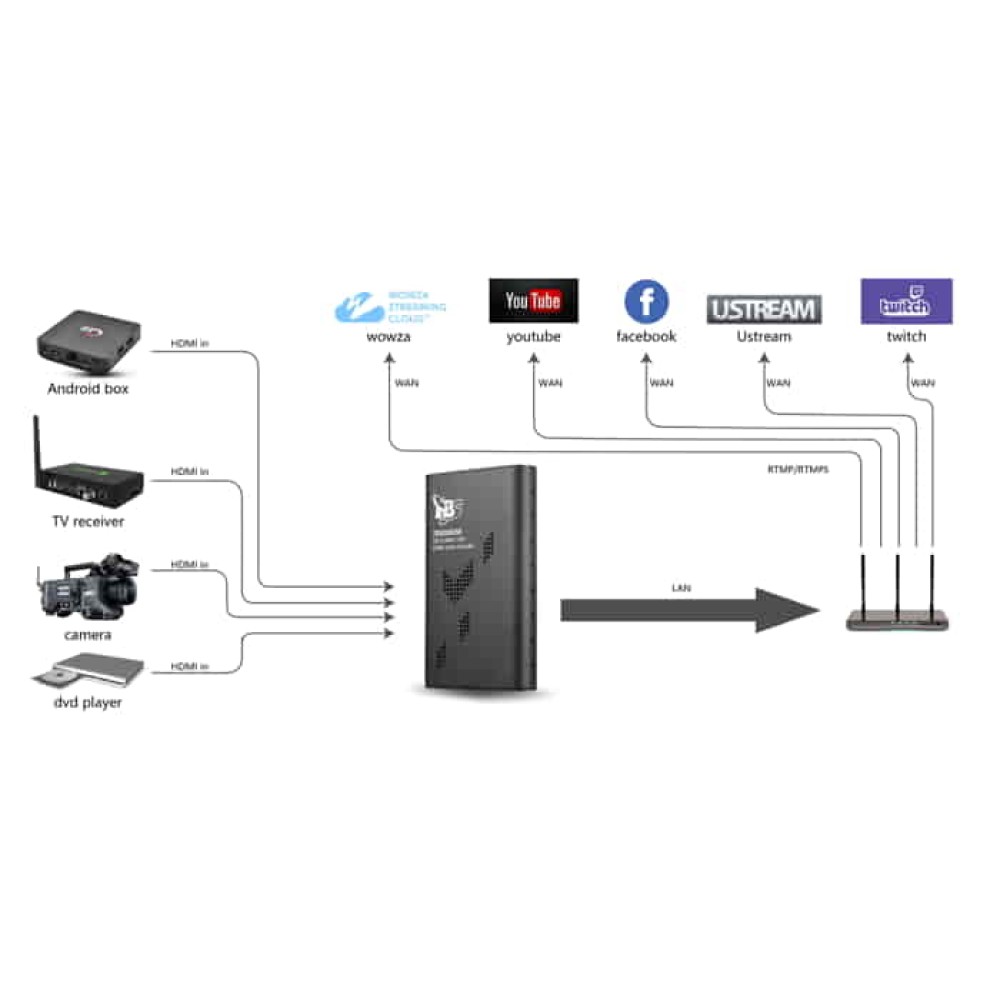

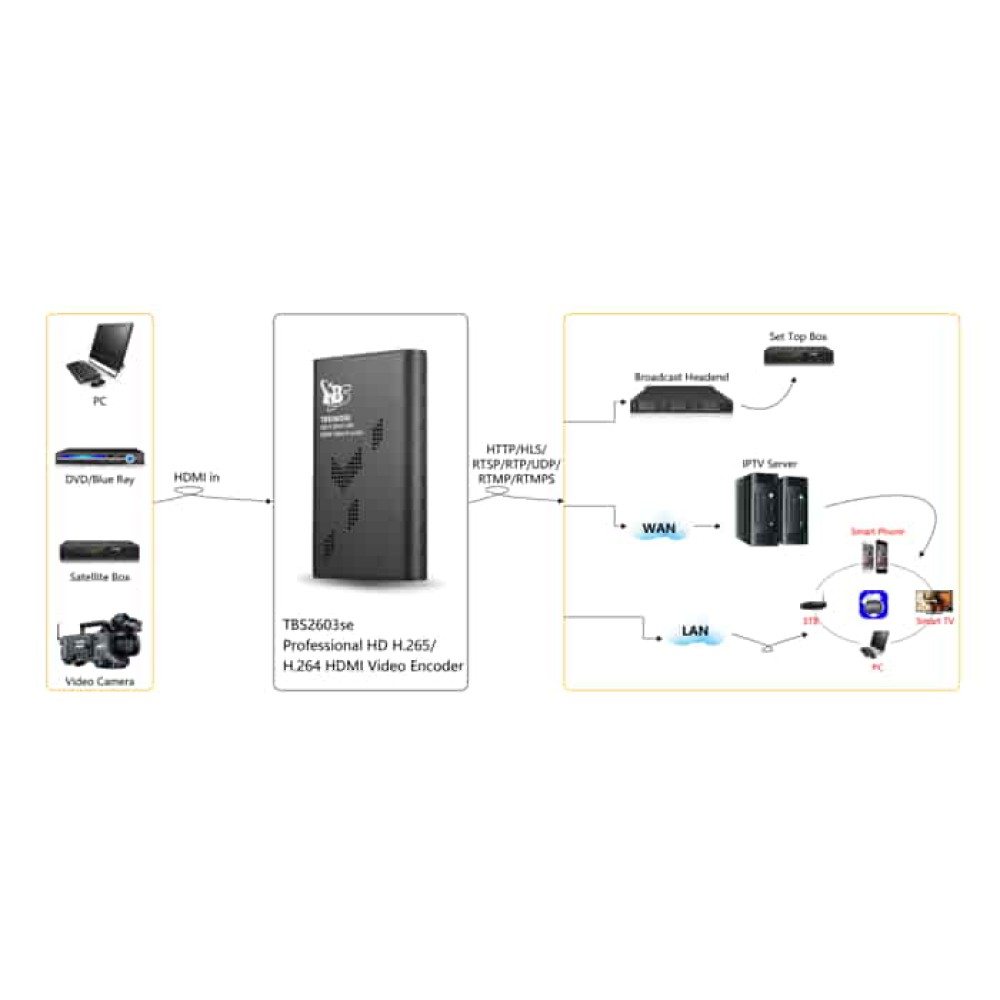

The TBS-2603 SE is a professional HDMI video encoder, which supports one channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. The TBS-2603 SE can encode video streams from any HDMI video source to various media streaming servers (Wowza, Read 5, Xtream Codes, Flussonic, FMS, etc) or online live broadcasts platforms (Youtube, Facebook, Twitch, Vimeo, etc. ) over IP in real-time.

The TBS-2603 SE HD hardware encoder is widely applied in education, health care, IPTV, conference, remote education, news interview, banking, transportation, and other industries.

Features

H.264/H.265 video encoding

AAC, MP3, MP2, PCMA audio encoding

Flexible and friendly web UI control

Visual input (Preview)

The bitrate of output video stream is adjustable from 500kbit/s to 20Mbit/s

Support HTTP, HLS (m3u8), RTP/UDP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF

Support insert Logo, Text, Mosaics Or Time to the video

Support output displayed video resolution and frame rate setting (max 1920x1080P@60fps)

Stable and effective, support 7 x 24h working time

NDI®|HX support with the latest update

NDI stream output thru a local switch and web user interface

The output NDI®|HX stream can be automatically detected by any NDI-enabled media networks, devices, and applications

Specifications

Video Input: HDMI 1.4

Resolution: 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ;

720×576; 640×480, and etc.

Output Resolution: 1920×1080@60fps; 1680×1050; 1280×720; 1024×576; 850×480; 720×576;720×480;640×480;480×360;360×240; auto; customized and etc.

Encode: H264 baseline, H264 Main, H264 High, H265 Main

Bitrate: 0.5Mbps-20Mbps

Bitrate Control: CBR, VBR, AVBR, FIXQP

Protocol: HTTP, HLS, RTSP, RTP/UDP Unicast/Multicast, RTMP (RTMPS)

Audio

Input: HDMI eingebaut

Encode: AAC, MP3, MPEG2, PCMA

Sampling rate: 16K, 32K, 44.1K, 48K

Sampling precision: 16 bit

Bitrate: 32Kb/s – 256Kb/network Stream IN

Video: H264, H265

Audio: MPEG2, MP3, AAC

Protocol: HTTP, RTSP, RTP/UDP

Applications

Digital signage

Hotel TV systems

IPTV/SmartTV

Video conference

Classrooms – teaching online (homeschooling)

IP video surveillance Live broadcast

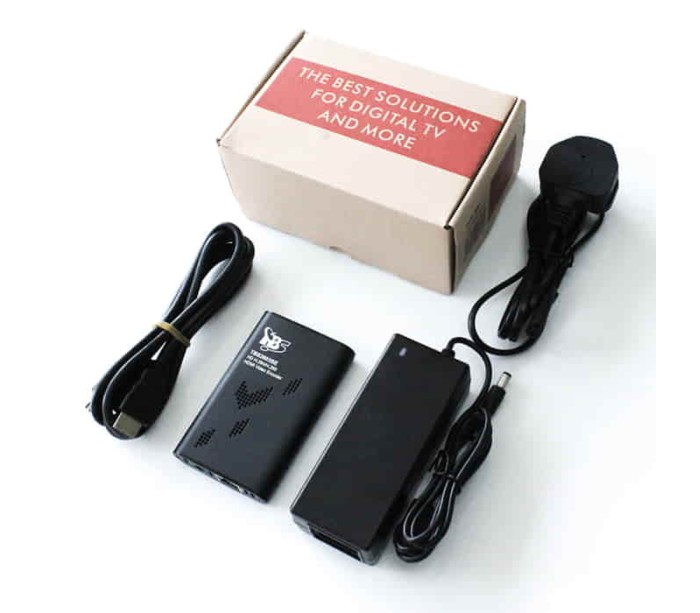

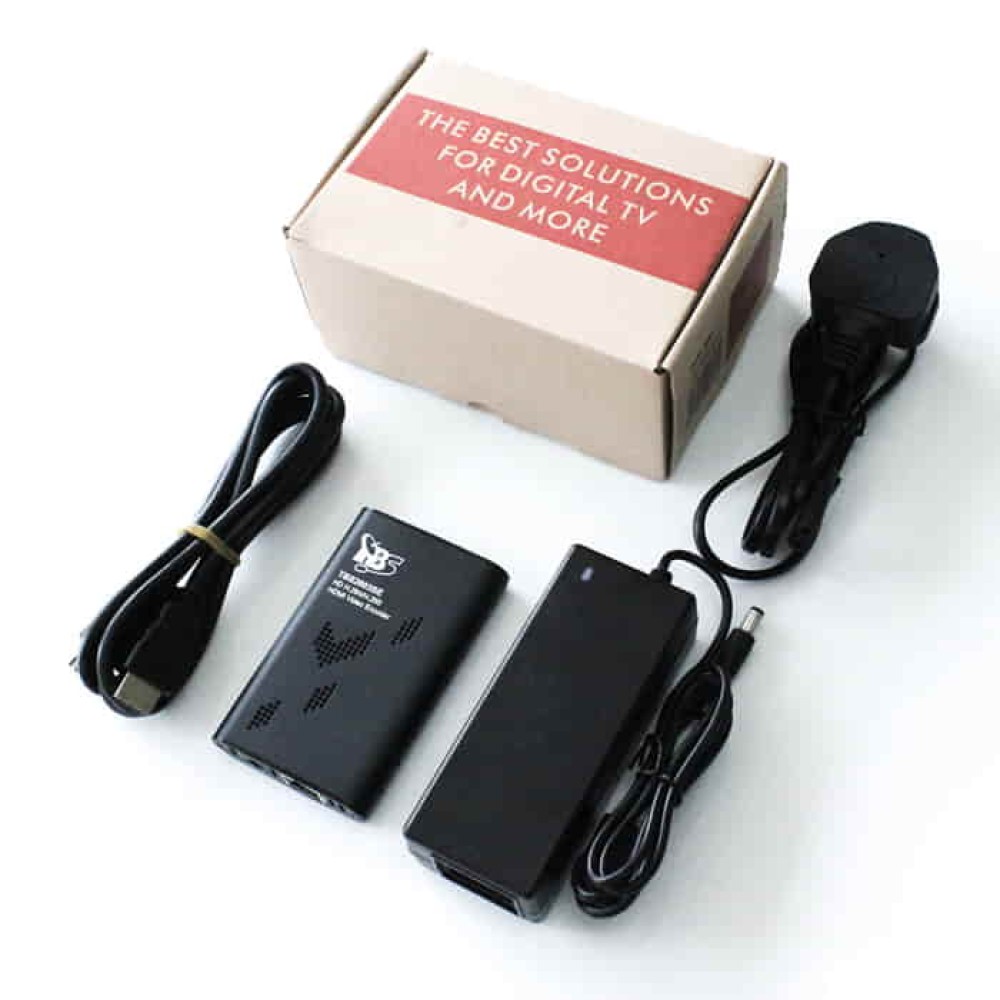

Package Contains

1 x TBS-2603 SE

1 x Power Adapter or Power Supply

1 x HDMI cable
