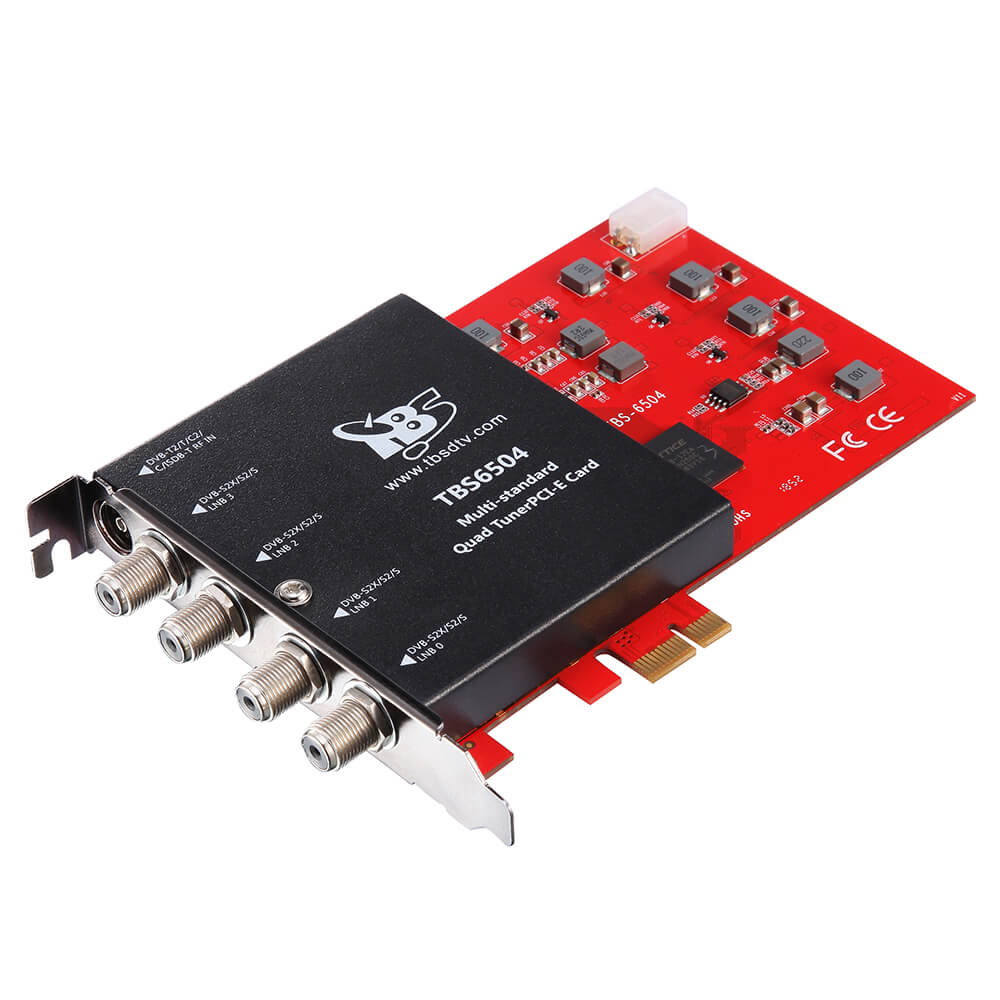

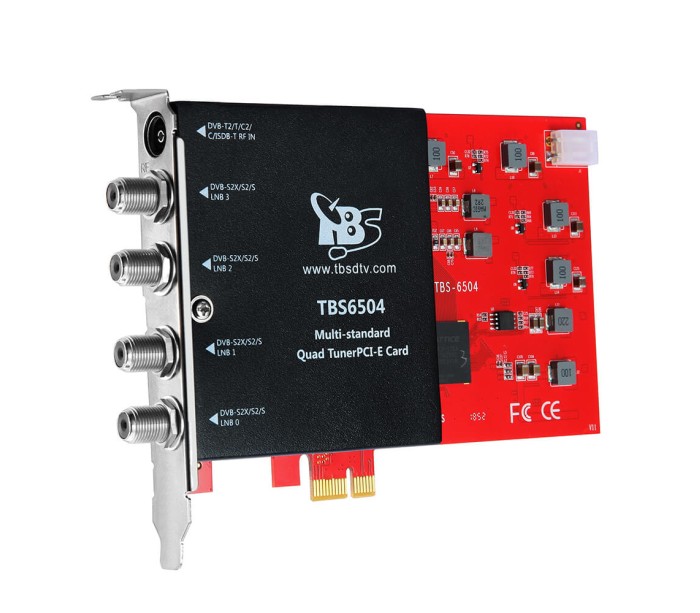

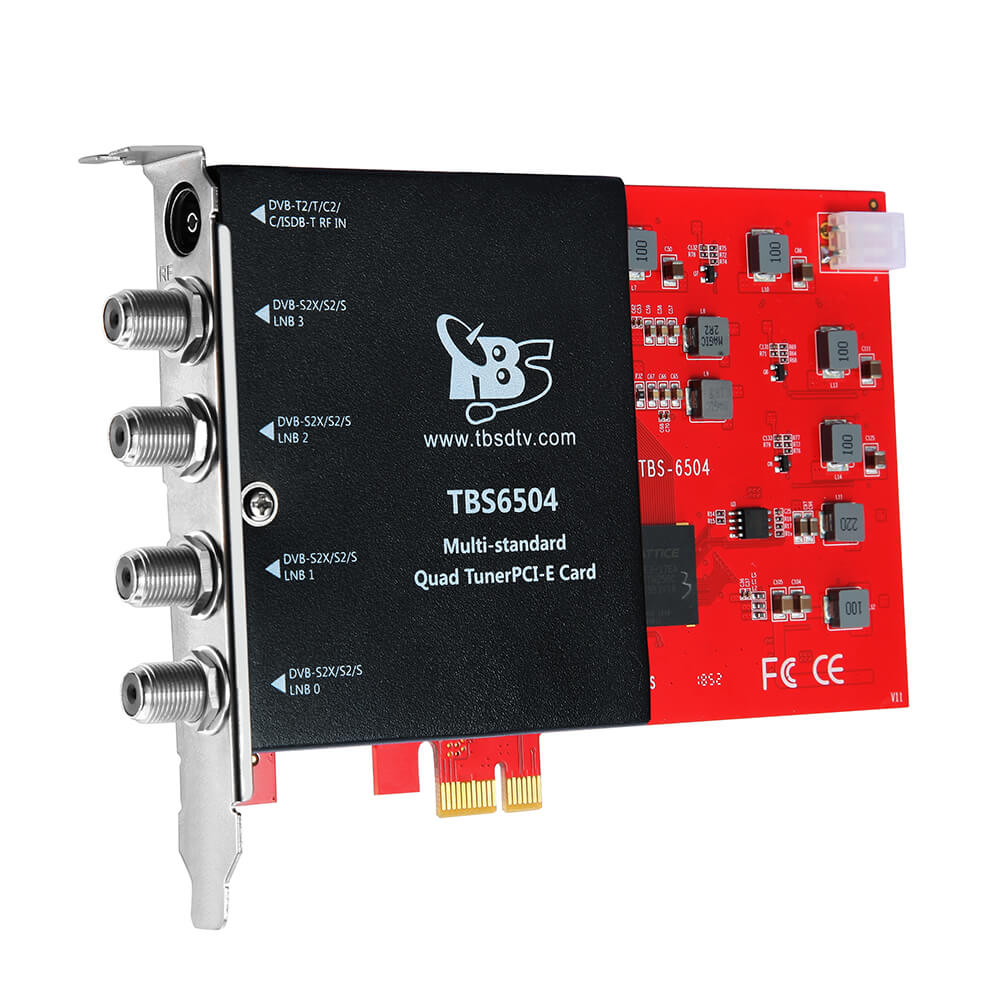

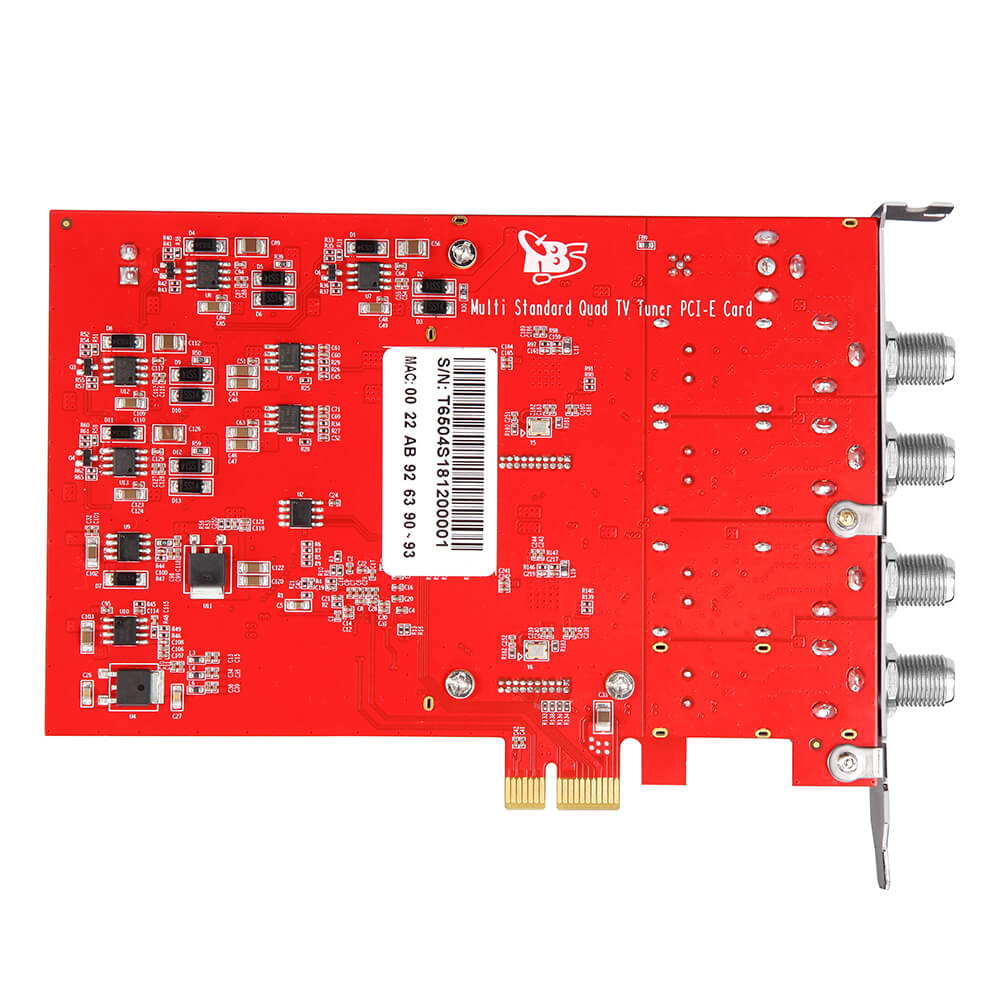

TBS6504
 is a Quad PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C/ISDB-T, four RF IN is independent with each other, with this multi-standard TV tuner card, it is much easier to switch between different digital TV signals, you just need to plug another signal cable instead of taking out the card from your server. With four tuners, the TBS6504 enables you to watch TV channel from one transponder/satellite while recording other channels from other transponder/ satellite at the same time.

Main Features:

• Support DVB-S/S2/S2X , DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T
• Fast scanning functionality for all media
• Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
• Up to 173M/bps(TS Data Rate)
• Quad flexible TS interfaces

Applications:

• Data receiving
• IPTV streaming
• Media monitoring
• Digital content distribution


  Specifications:

  ISDB-T	COFDM demodulator and FEC decoding
  	Support 3 layers decoding
  	TMCC decoding
  	Support differential demodulation
  	AC1 and AC2 decoding
  DVB-T2 and T2-Lite	Receiving channel: VHF band, UHF band
  	Bandwidth: 1.7, 5, 6, 7, 8MHz
  	FEC: QPSK, 16QAM, 64QAM,256QAM
  	FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
  	Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
  DVB-C2	COFDM demodulator(16_QAM to 4096_QAM)
  	FEC(LDPC/BCH) decoder
  	Bandwidth: 6MHz, 7MHz, 8MHz
  DVB-C and ITU-T J.83 Annex B	QAM demodulator
  	FEC decoder
  	1 to 7.2MSymbol/s
  DVB-S/S2/S2X	symbol rates: 1-45Msps
  	FEC: DVB-S/S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X QPSK: 13/45, 9/20, 11/20 2_4_2_APSK: 100/180, 104/180 8PSK: 23/36, 25/36, 13/188_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180 4_12_16rb_APSK: 2/3 4_8_4_16_APSK: 128/180, 132/180, 140/180
  Power consumption
  Input/ Power:	12V/6~18W
  temperature	0°~ 60°
  Other information:
  System Requirements	Windows XP / Vista/ 7/8/10, Linux
  	Available PCI Express x1, x4, x8 or x16 slot
  	Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
  Dimension:
  TV tuner card size	16*10.5*1.9 (cm)
  Net weight	135g
  Gift Box Size	18*16.5*3.5 (cm)
  Weight	320g
  Package Contents	1 x TBS6504
  	1 x DC cable
  	2 x F-IEC adapter
