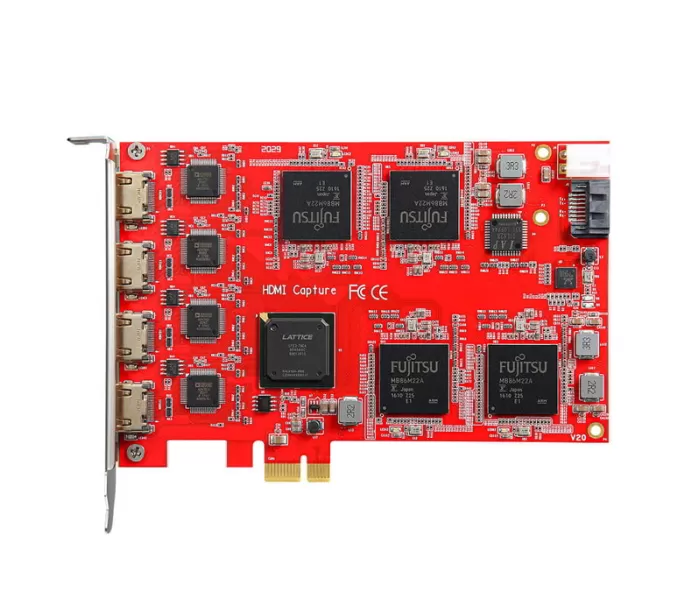

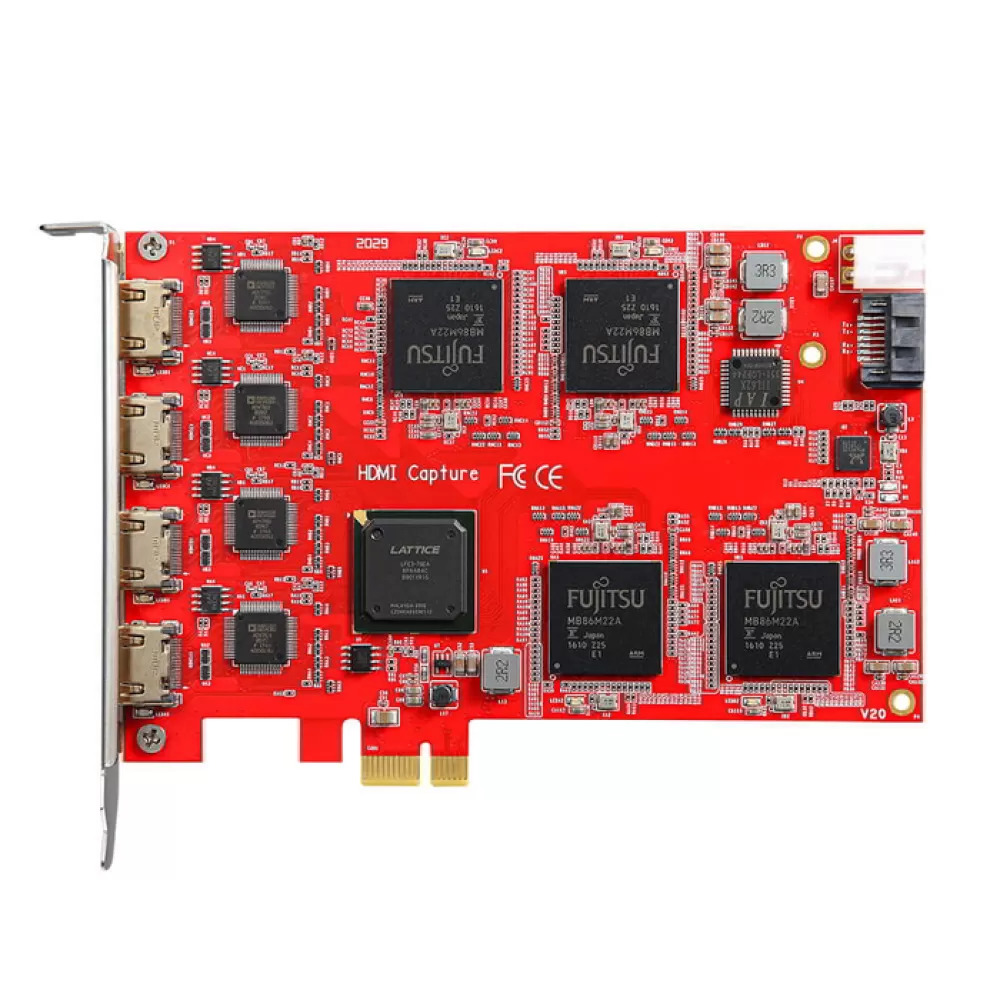

• TBS6304SE HD HDMI Capture Card

SOLID TBS6304SE HD HDMI Capture Card


comes with HDMI1.4 port, completely supports full HD Video and Audio capture and playback. It provides the highest quality HDMI input, and meets the HDMI 1.4 standard, satisfies the 1080P resolutions and can capture the LPCM audio signals in HDMI. You can easily capture signals from different kinds of devices by TBS6304 HDMI Capture Card without limitation

Pro Quad HD HDMI Capture Card (TBS6304)

TBS recently releases a high and standard definition capture card with quad HDMI 1.4 inputs and H.264 hardware compression. Users can easily capture SD/HD signals from different kinds of devices by this Pro Quad HDMI Capture Card without limitation.

 Enjoy True HD 1080P
Pro Quad HD HDMI Capture Card supports quad HDMI/HDCP inputs displaying up to 1080i resolution and compacts audio/video/composite/component (1080i) interface for transmitting digital data. It also supports to capture or record HD content in H.264 format from PS3, Xbox 360 and digital camcorders.

Applications:

•          IPTV Servers

•          Datacasting and monitoring

•          Live TV Capturing and streaming

•          Broadcast TV



Features:

•          Quad HDMI inputs

•          Max. input resolution 1920 x 1080 60fps

•          Compliant with HDMI 1.3, HDMI 1.4a, HDCP 1.4

•          H.264 hardware compression

•          10-Bit absolute encoding

•          Windows & Linux support



H.264 Hardware Compression with low CPU Consumption Solution

Equipped with an advanced built-in H.264 hardware encoder that enables the system not to utilise CPU's computing ability while maintaining high quality video encoding. This feature balances the load, thereby improving the reliability of the system.

The TBS Pro Quad HD HDMI capture card is used as a DVB tuner system device, built into the H.264 encoder that supports HDCP, and provides adjustable resolution and bit rate options. You can easily apply it to IPTV streaming servers of headend systems.



4 x Real HDMI Digital Interface

TBS HD HDMI Capture Card provides 4 HDMI inputs of the highest quality video. It meets the HDMI 1.4 standard and can be able to capture the LPCM audio signals.



Flexible Extension for 8 Inputs:

Strong expandability, it can connect additional cards through SATA cables without using a second PCI-E slot, which can be expanded to 8 HDMI capture cards.



Intuitive User Interface for Effective

Management of TS Stream Outputs

TBS Pro Quad HD HDMI Capture Card supports automatically detecting the signal source. With TBS encoded setting tool, it can easily switch between channels and adjust configurations, offering better TV viewing experience.



Specifications:

Model

TBS6304

Interface

PCI-E x 1

Input

HDMI 1.4a

Output

TS

Recording Mode

Hardware compression, real time mode

Encode Format

H.264

Audio Input

HDMI Embedded audio

Update

Firmware could be updated.

OS and Driver

Windows XP / Vista / Windows 7 /Windows 8 / Windows 10/Linux

Temperature

0 ~ 60

Dimension

Capture Card Size

144mm * 104.5mm

Gift Box Size

18.5*16.5*3.5 cm

Weight

500g

Package content

1* TBS6304 HDMI capture card

1* DC line

HDMI Input Video Format Support:

Horizontal size

Vertical size

Rate

I (Interleave)or P (Progressive)

1920

1080

60 / 59.94

P

1920

1080

50

P

1920

1080

60 / 59.94

I

1920

1080

50

I

1280

720

60 / 59.94

P

1280

720

50

P

720

483(480)

59.94

P

720

576

50

P

1920

1080

30 / 29.97

P

1920

1080

25

P

1920

1080

24 / 23.98

P

1280

720

30 / 29.97

P

1280

720

24 / 23.98

P
