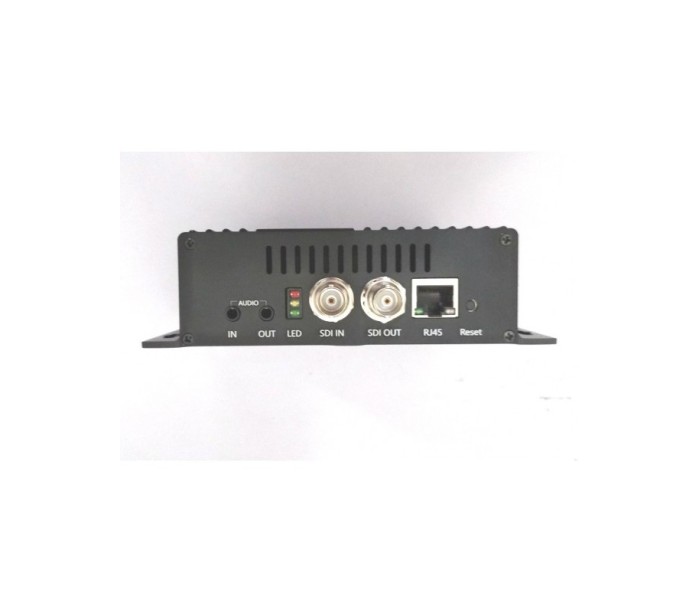

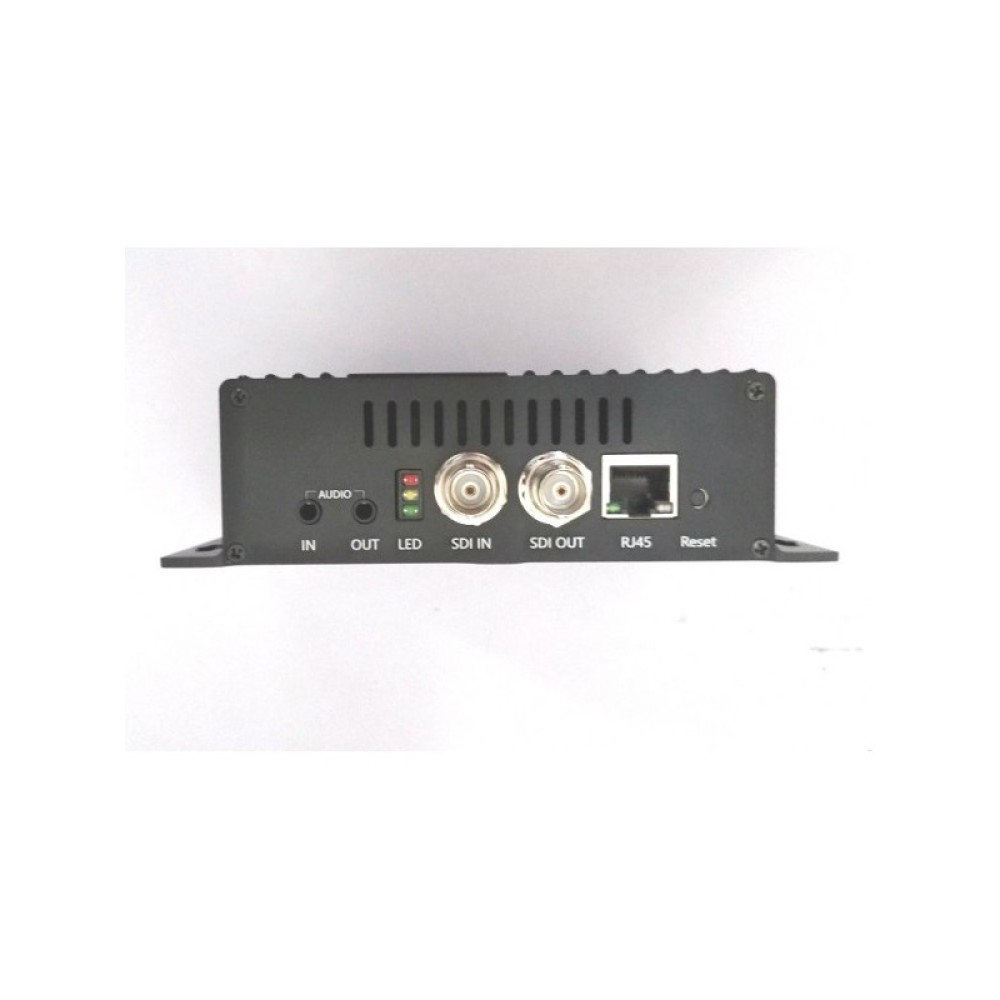

SOLID TBS2600V1 is a professional H.265/H.264 HD-SDI video encoder, which equipped with SDI input and dual stream RJ45 output,what’s more, it has SDI output which can output original data directly. It supports MPEG-4 AVC/H.265/H.264 High Profile code format input and dual stream H.264 format, audio ACC format output, it also compatible with HTTP, UDP, RTSP, RTMP, ONVIF protocols.

The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking,transportation and other industries.

Features

Support direcSOLID TBS2600V1 Professional HD-SDI Video Encoder for IPTV Live Stream Broadcastt network connection without HD capture card

Main stream and secondary stream can use different network protocols for transmission

Low Power consumption, less than 6W

Compliant with HTTP/RTSP/RTP/RTMP/UDP protocols

Supports MPEG-4 AVC/H.265/H.264 High Profile code

Application

IPTV

Digital Signage

Video Conference

Replace HD Video Capture Card

Hotel TV system

Live Broadcast;

Teaching/Campus Broadcast

Recording System

NVR (Net Video Recorder)

Specification

Input
Video Input	SDI
Audio input	SDI embedded audio
AC IN	110V~240V
AC rate	60/50Hz
Output
DC output	12V/2A
Power Dissipation	5W
Video
Resolution	1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below
Encoding	H.265/H.264/AVC Main Profile/High Profile , Audio AAC
Data Rate	16KBIT/S~12MBIT/S
Rate Control	CBR/VBR
GOP Structure	IBBP
Advanced Pretreatment	De-interlacing, Noise Reduction, Sharpening
Audio
Encoding	AAC, MP3
Sampling rate	Auto
Bit-rate	32K/48K/64K/96K/128K/160K/192K
Sampling precision	24 bit
Data Rate	64Kb/s ~ 384Kb/s
System
OS	LINUX
Ethernet/RJ45	1000 Base-T Ethernet interface
Control Interface	Web
Protocol	HTTP, UDP, RTSP, RTMP, ONVIF
Others
Dimension	17168.5(cm)
Net weight	0.65kg
temperature	-20℃+ 60℃
