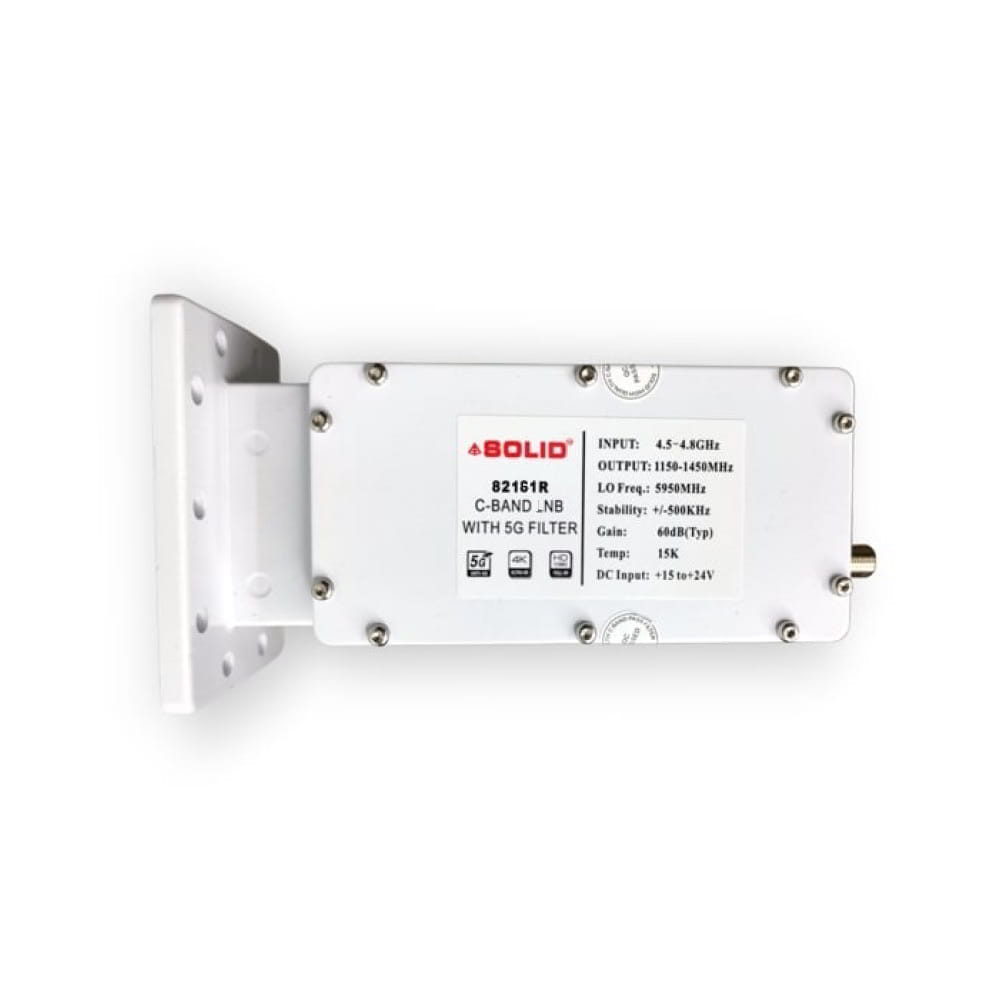

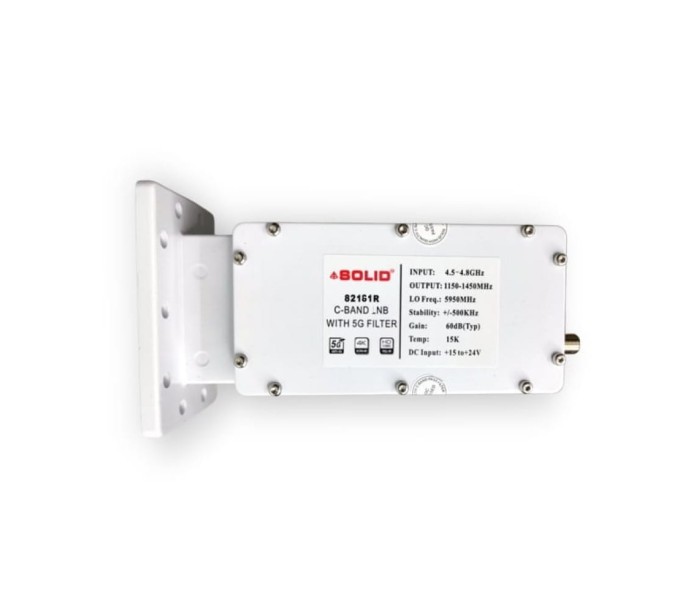

SOLID 82161R Extended C-Band 5G Filter LNBF

Model - 82161R

Input Freq. (GHZ) - 4.5~4.8 GHz

Output Freq. (MHz) - 1150-1450 MHz

L.O. Freq. & Stability  - 5.950 GHz+/- 500KHz

Noise Temp. (@+25C)  - 30K Max

Input VSWR    - 2.5:1 Max

Image Rejection  - 45 dBc min.

Conversion Gain  - 65dB typ. 55dB min. 70dB max.

Output VSWR  - 2.5: 1 max.

Gain flatness   - 4 dBp-p max.

Gain ripple   - +/- 0.5 dB max.

1dB gain compression point - +5 dBm min.

Output impedance   -  75ohms

Leakage {@input port)  - -45dBm max.

Phase Noise -  -65dBc/Hz @ 1KHz Offset

• -80dBc/Hz @ 10KHz Offset
• -95dBc/Hz @ 100KHz Offset

Power Supply   - 012 to +24V DC

Required Current -  150 mA max.

Operating temperature  - -40'C to +60'C

Storage temperature   -  -40'C to +80'C C33

Relative Humidity   -  0% to 95% RH

Input waveguide flange   -   WR-229

If output connector  -  - F-Type female

Weight    -    575g

Tested in :

We have successfully tested this LNB on Bangabandhu1 Satellite for Extended C-Band Signals.

Warning :

It will not work, in Normal C-Band Signals, It is only for extended C-Band signals. You can Receive TV Signals from the Bangabandhu C-Band satellite by fitting on the C-Band Dish Antenna. Return will not be acceptable for wrong orders.

This Solid 5G Filter C-Band LNB is available at the best price in India, This Solid 5G Filter LNB is the best for receiving extended C-Band signals.
