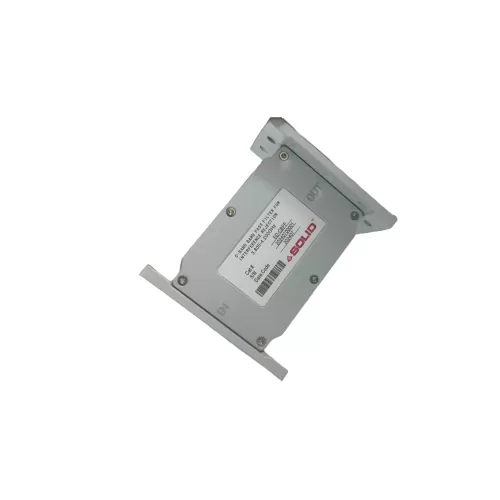

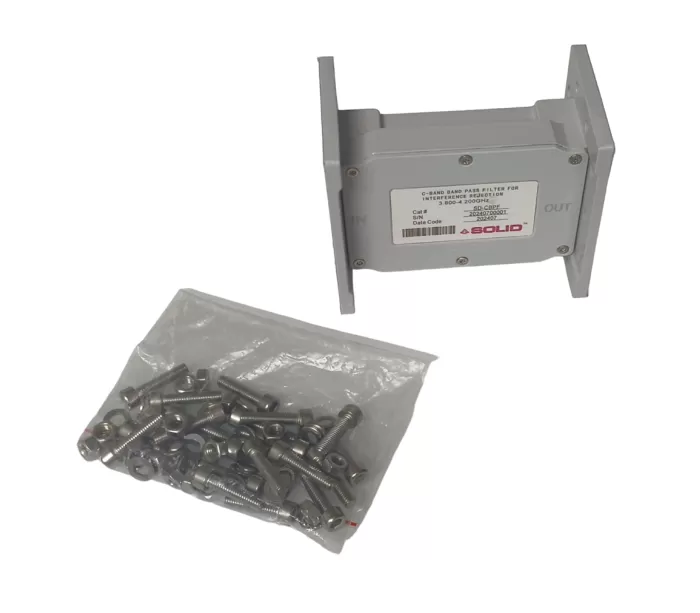

SOLID CBPF-4000-4200MHz / 4.0-4.2 C-BAND PASS FILTER
Pass band: 4000-4200MHz
Suitable for indoor and outdoor applications
Plane mounting
Connector Type， Flange
|
Electrical Specifications |
|||
|
Type No. |
FT6B40420010 |
||
|
Frequency Band (MHz) |
4000-4200 |
||
|
Insertion Loss (dB)(Full temperature,Outcluding connectors) |
0.7typ.,1.5max |
||
|
Rejection (dB) |
≥10@3300-3980MHz,≥40@4250-5000MHz |
||
|
Return Loss (dB)/VSWR |
≤-16/1.4:1 |
||
|
Mechanical Specifications |
Environmental & Compliance |
||
|
Dimensions,HxWxD (mm) |
170x98.5x69.9 |
Operational Temperature (°C) |
-40 to +65 |
|
Weight (kg) |
0.8 |
Operational Humidity (%) |
≤95 |
|
Packing Size(mm) |
235x170x120 |
Environment |
IP67 |
|
Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
|
Color |
Apple White |
RoHS |
Compliant |
|
Mounting |
Plane mounting |
Finish |
UV resistant Epoxy |
SOLID CBPF-4000-4200MHz / 4.0-4.2 C-BAND PASS FILTER
- Brand: Solid
- Model No.: CBPF-4000-4200
- Get CashBack: 200
- Availability: Out Of Stock
-
₹10,000.00
- Price in Cashbacks: 10000
- Have any Question? or Bulk Enquiry?.
Offline Retailers: Qty-wise discounted prices are applicable for dealer accounts only. Contact us to convert your account.
Online Sellers: Special Pricing for dropship accounts.
Available Options
