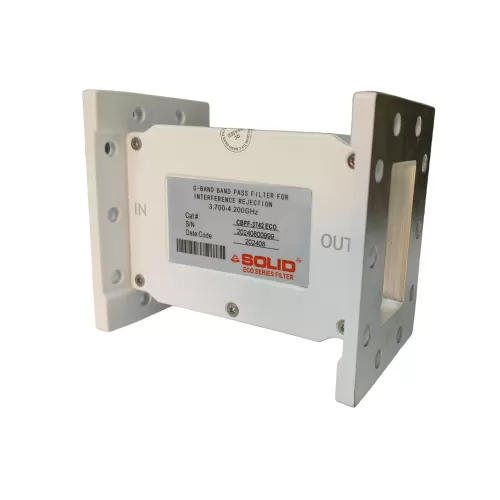

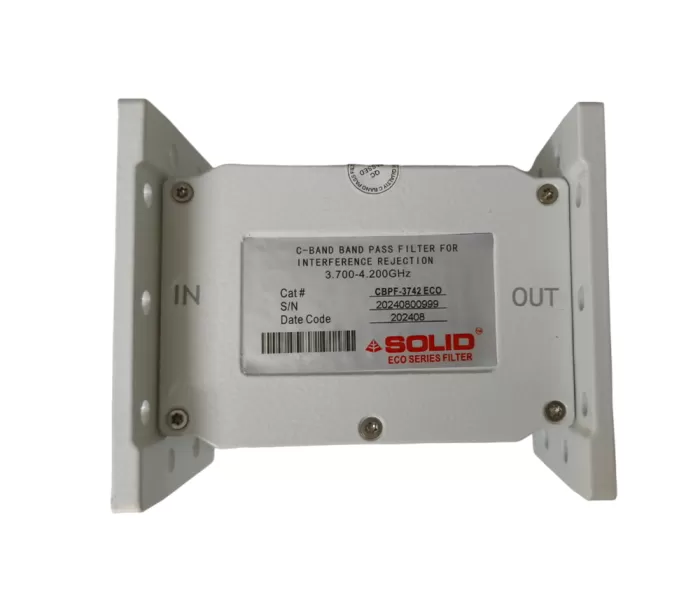

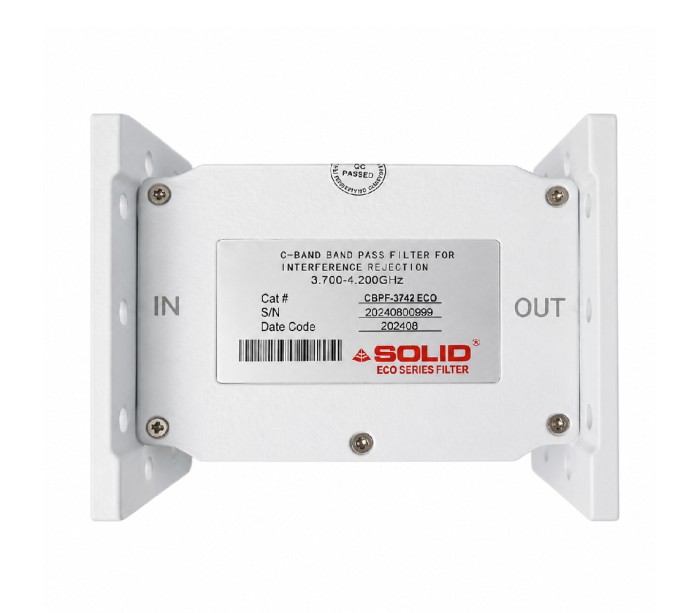

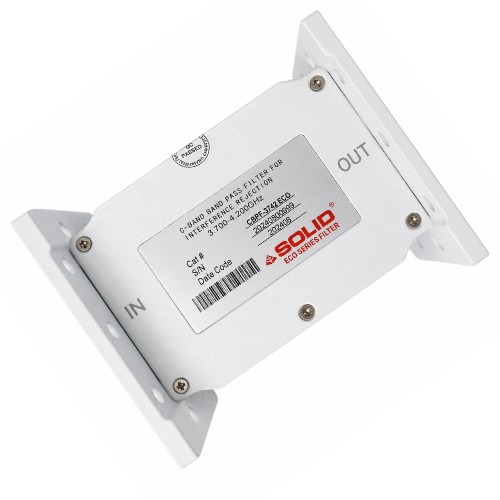

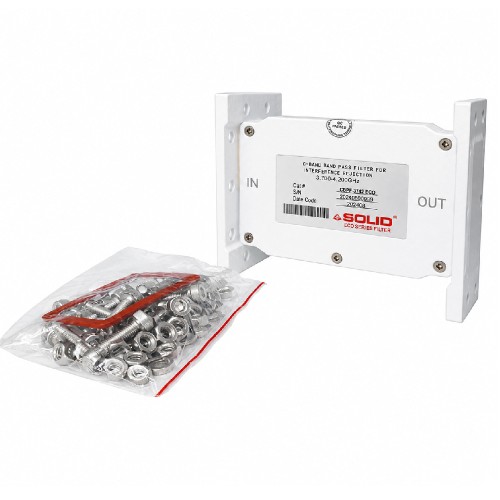

SOLID CBPF-3700-4200MHz C-BAND 5G PASSBAND FILTER
Pass band: 3700-4200MHz
Suitable for indoor and outdoor applications
Plane mounting
Connector Type， Flange
|
Electrical Specifications |
|||
|
Type No. |
FT6B37420230 |
||
|
Frequency Band (MHz) |
3700-4200 |
||
|
Insertion Loss (dB)(Full temperature,Outcluding connectors) |
0.4 max |
||
|
Rejection (dB) |
≥75@3000-3500MHz,≥70@3500-3600MHz, ≥25@4250-4400MHz, ≥70@4400-5000MHz, |
||
|
Return Loss (dB)/VSWR |
≤-19/1.25:1 |
||
|
Input Power (W) |
<100 |
||
|
Grorp Delay(ns) |
0.6 (Within +/-0.5MHz) |
||
|
Mechanical Specifications |
Environmental & Compliance |
||
|
Dimensions,HxWxD (mm) |
120x98.4x69.9 |
Operational Temperature (°C) |
-40 to +65 |
|
Weight (kg) |
0.65 |
Operational Humidity (%) |
≤95 |
|
Packing Size(mm) |
190x170x130 |
Environment |
IP67 |
|
Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
|
Color |
Apple White |
RoHS |
Compliant |
|
Mounting |
Plane mounting |
Finish |
UV resistant Epoxy |
SOLID CBPF-3700-4200MHz C-BAND 5G PASSBAND FILTER
- Brand: Solid
- Model No.: CBPF-3742Eco
- Get CashBack: 200
- Availability: In Stock
- MRP: ₹15,000.00
-
Special Price: ₹6,750.00
- Price in Cashbacks: 10000
- Have any Question? or Bulk Enquiry?.
Offline Retailers: Qty-wise discounted prices are applicable for dealer accounts only. Contact us to convert your account.
Online Sellers: Special Pricing for dropship accounts.
Available Options
Related Products
-400x273.jpg "SOLID 82152R Extended C-Band 5G Filter LNBF")

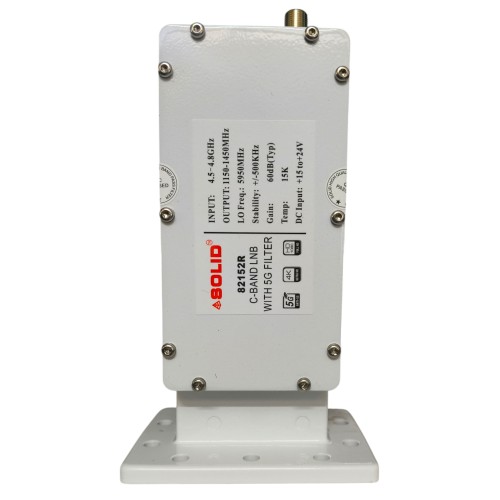

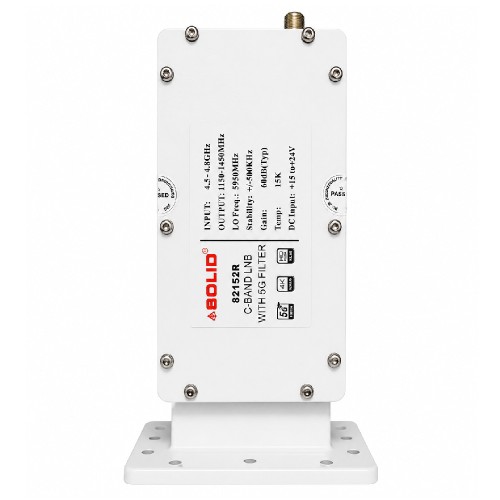

SOLID 82152R Extended C-Band 5G Filter LNBF
SOLID 82152R Extended C-Band 5G Filter LNBFAn Extended C-Band 5G Filter LNBF (Low-Noise Block d..
₹3,700.00 ₹4,500.00

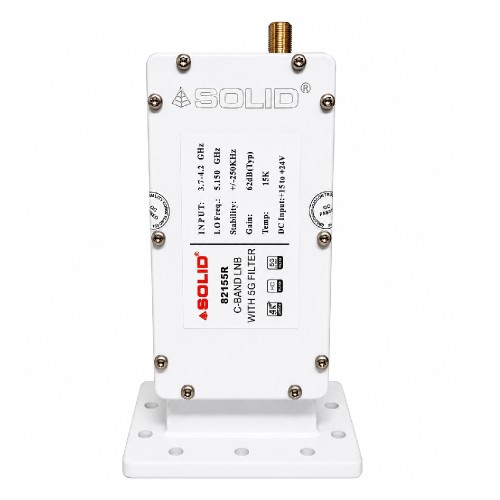

SOLID 82155R C-Band TI and 5G Filter LNBF
SOLID 82155R C-Band TI and 5G Filter LNBFThis C-Band LNB is best if you are facing the problem of si..
₹2,730.00 ₹3,500.00

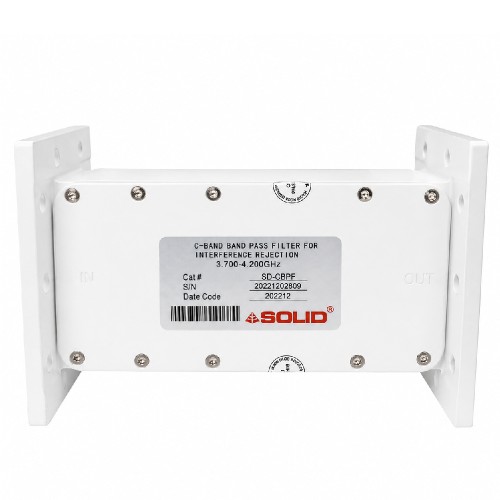

SOLID CBPF 3700-4200Mhz C-BAND BAND 5G PASS FILTER (NEW)
SOLID C-BAND BAND 5G PASS FILTER• Rejects terrestrial interference in C-Band (5G, Telecom Radar, and..
₹12,350.00 ₹15,000.00
SOLID 82151R Extended C-Band 5G Filter LNBF
SOLID 82151R Extended C-Band 5G Filter LNBFModel - 82151R Input Freq. (GHZ) - 4...
₹15,000.00
SOLID CBPF 3720-4200MHz C-BAND BAND PASS FILTER
SOLID CBPF 3720-4200MHz C-BAND BAND PASS FILTER• Rejects terrestrial interference in C-Band (5G, Tel..
₹10,000.00
SOLID CBPF 3600-4200MHz C-BAND BAND PASS FILTER
SOLID CBPF 3600-4200MHz C-BAND BAND PASS FILTER• Rejects terrestrial interference in C-Band (5G, Tel..
₹10,000.00

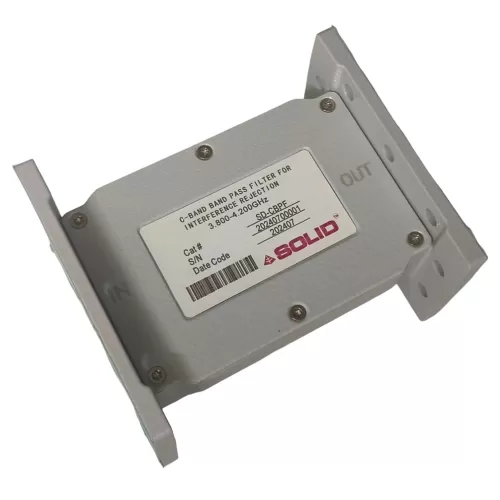

SOLID CBPF 3400-4200MHz C-BAND BAND PASS FILTER
